Ocean King
Ocean King 240
The Smoothest Operator On The Roughest Water.
The Weldcraft 240 Ocean King expands upon the robust foundation set by its 22-foot predecessor, scaling up for those who demand more from their nautical exploits. This craft increases its dimensions, granting a vast interior landscape to comfortably maneuver and store all necessary fishing equipment. Its assertive upswept bow and sharp 32-degree bow deadrise slice through the waves with authority, while the high 39.5-inch sides provide a greater degree of protection and safety for those aboard.
Whether you choose the reliable sanctuary of the full hardtop or the flexible Alaskan bulkhead with a secure lockable door, the Weldcraft 240 Ocean King is not just about offering additional space—it’s about enhancing your ocean adventures with more room, superior comfort, and an unyielding drive to explore the furthest reaches of the sea.

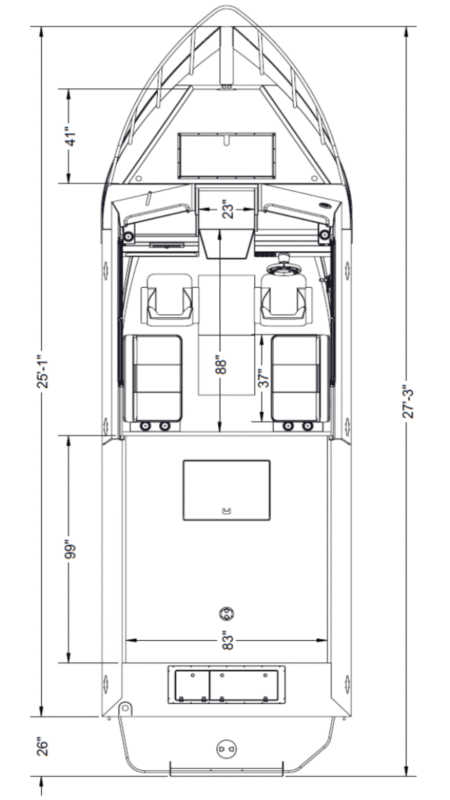

SPECIFICATIONS
| Length (including bracket) |
27′ 3″ / 8.3m |
|---|---|
| Beam | 102″ / 2.6m |
| Bottom | 90″ x .190″ w/ Reverse chine / 2.13m x 4.83mm |
| Side | 39″ x .125″ / 99.06 cm x 3.16mm |
| Dry Weight | 3640lbs / 1651kg |
| Fuel | 84USG diurnal fuel system / 317L |
| Max HP Rating | 425HP / 317kw |
| Maximum Capacities | 9 persons or 1485lb, 674kg 3400lb, 1542kg with motor, persons, gear |
BUILD YOUR OWN WELDCRAFT
Customize your boat how you want it.
Start Building Free Dealer QuoteDEADRISE
STANDARD FEATURES
- 25″ Single engine offshore bracket with integral bottom sheet and full width swim platform
- Extruded chine, toe rail and keel strip
- Full reverse chine bottom design
- Seafaring hard top (88″) w/aft leaning windshield, top trays, red/white
- LED cabin lights, marine grade aluminum slider side windows,
- 3″ top rails, tread plate roof, & clear vinyl backdrop
- Swept bow design w/ self-bailing recessed diamond tread bow,
- 56-gallon bow box & 29″ safety rails
- Bow storage
- Transom with 35-gallon fish box, self draining utility area, 2-piece cutting board hatch lid and framed rigging access panels
- 4 Side storage trays with gunwale rod racks – 2 per side
- 134-gallon floor fish box w/ macerator pump out
- Self-draining rear deck
- Pressure tested sub floor fuel cell
- Welded double bow eye
- 2 – Welded stern eyes
- 7 – 8″ Welded cast cleats
- Trim tab brackets
- Transducer brackets
- Choice of 2 standard granite color paint on cabin, deck, gunwales, and interior
- Half side and transom paint w/side striping and vinyl graphics, includes top brow
- Full fisherman’s interior in rear deck
- Offshore zinc anodes – 2x
- Stainless steel thru-hull fittings below waterline w/ seacock valves
- Composite aft deck flooring
- Severe duty mariner seats w/swivels
- 37″ Rear bench seats w/back rest
- Port console w/ locking storage
- Overhead storage compartment
- Vinyl covered marine grade plywood floors inside cabin
- Back drop
- Carpeted cabin side walls & bow storage
- 6-Stainless steel cup holders inside cabin
- Sub floor storage
- Easy access bow storage w/ snap on net containment covers
- Locking glove box
- Driver and Passenger side pantograph wiper
- Hydraulic steering system
- Switch panel w/ fuel gauge and USB port
- LED Navigation lights and anchor lights
- Stainless steel marine horn
- Forward and aft bilge pumps w/auto float switches
- Fuel water separator
- Wash down
- Single battery switch
- EZ Loader – T102BT 23-25 5700
- EZ Loader – T102BT 26-30 7500
- Gateway – GTT52/22-25
- Bottom upgrade
- Integrated trolling motor bracket option
- Welded swim platform kicker selection
- Stern rails
- Anchor storage
- Anchor pulpit
- 3 step boarding ladder w/ grab handle
- Rear transom door
- Outboard pre-rig options
- Twin engine pre-rig package
- Hang, rig & run
- Kicker motor pre-rig
- Optional gauge upgrade
- Outboard battery system
- Floor courtesy lights
- Paint upgrade
- Seat upgrade
- On board diesel heater
- Bow anchor system
- Auxiliary fuel line w/ quick-connect
- AM / FM CD Stereo
- Remote spot lights
- Fixed exterior lights
- Electric trim tabs
- Locking glove box door
- Rocket launcher rod racks
